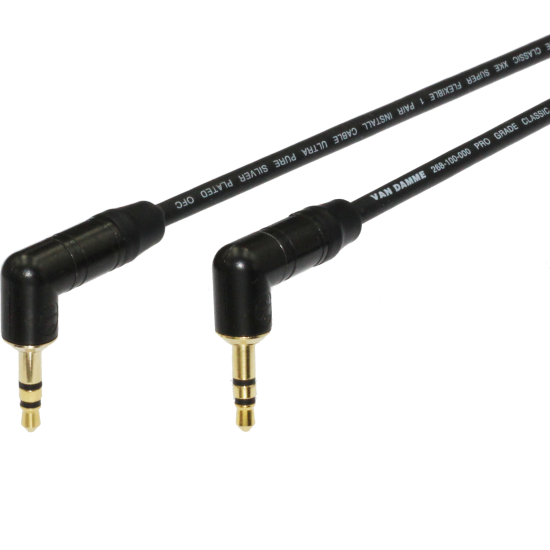

3.5mm Mini Jack Right Angle Cable Neutrik Van Damme Lead Black Gold

Neutrik, black body gold contacts 3.5 mm right-angle, to right-angle jack plug cable. Also known as a mini Jack lead.

This is a screened cable for connection between an audio source to an active speaker. The cable can carry a stereo signal, left, right or a balanced (mono)

We make this cable to order for you. Using 4 percent silver solder and advanced soldering equipment, we are able to make the very best soldered joint that will outlast the cable.

The cable is 100 percent ultra-pure copper, oxygen-free. UPOFC The cable is flexible and hard-wearing.

Cable length is measured from the rear of the connectors, which is the visible length.

Specifications

Screened

Insulation Material PE

Outer Diameter 3.6mm

Capacitance Core To Screen 152pF/m

Screen Type Copper

Sheath Colour Black

Conductor Strand Type Stranded

Core Strands 14/0.1 mm

Capacitance Core To Core 47pF/m

Size of Strands 0.1 mm

Conductor Material Copper

Balanced Yes

Sheath Material Polyvinyl Chloride PVC

Conductor Resistance 130 Ω/km

Number of Strands 14

Cable Shape Twisted Pair
