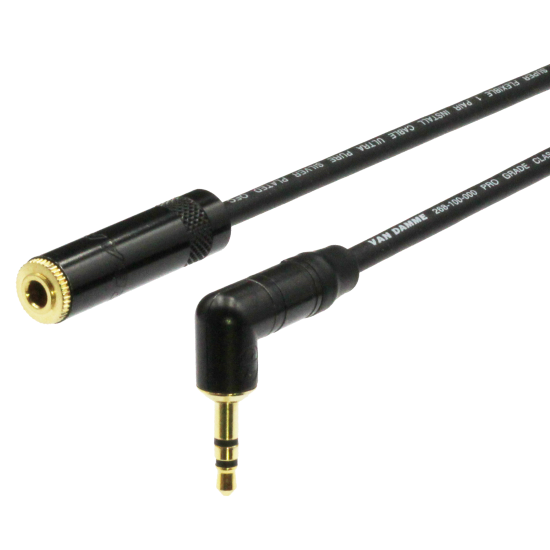

3.5mm Mini Jack Right Angle to Female Van Damme Neutrik Black Gold

Neutrik, Rean black body gold contacts 3.5 mm right-angle, to 3.5mm female Jack extension cable.

This is a screened cable to extend q 3.5 mm cable. The cable is screened. It can carry a stereo audio signal for left-right audio, and it can also carry a balanced signal also.

This cable is made to order for you. Using advanced soldering equipment, we are able to make the very best soldered joint that will outlast the cable. We also use  4 percent silver solder to get a shiny finished joint, which is hard to achieve with lead-free solder.

The cable is 100 percent ultra-pure copper, oxygen-free. UPOFC The cable is flexible and hard-wearing.

Cable length is measured from the rear of the connectors, which is the visible length.

Specifications

Screened

Insulation Material PE

Outer Diameter 3.6mm

Capacitance Core To Screen 152pF/m

Screen Type Copper

Sheath Colour Black

Conductor Strand Type Stranded

Core Strands 14/0.1 mm

Capacitance Core To Core 47pF/m

Size of Strands 0.1 mm

Conductor Material Copper

Balanced Yes

Sheath Material Polyvinyl Chloride PVC

Conductor Resistance 130 Ω/km

Number of Strands 14

Cable Shape Twisted Pair
