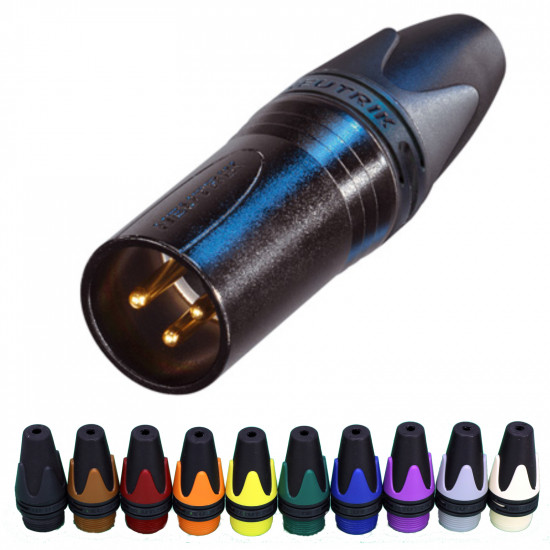

NC3MXX-B Neutrik Male XLR Black Gold Contacts 3 pin Boot Colours

Neutrik NC3MXX-B Male XLR Black Gold 3-pin Contacts Boot Colours (BXX)

Accepts 3.5 mm to 8 mm diameter cables

Black Chrome Body

Neutrik connectors are best known for robustness and quality and are used by professionals the world over. You can not go wrong with Neutrik connectors. We have been using Neutrik connectors for decades on our made-to-order leads.

Connectors come from Neutrik bulk boxes - no plastic bags - better for the environment. The connector will be assembled upon despatch with the colour boot of your choice.

Choose Boot Colour

Product

Title NC3MXX-B

Connection Type XLR

Gender male

Electrical

Capacitance between contacts ≤ 4 pF

Contact resistance ≤ 3 mΩ

Dielectric strength 1,5 kVdc

Insulation resistance > 10 GΩ (initial)

Rated current per contact 16 A

Rated voltage < 50 V

Mechanical

Cable O.D. 3.5 - 8.0 mm

Insertion force ≤ 20 N

Withdrawal force ≤ 20 N

Lifetime > 1000 mating cycles

Wiresize max. 2.5 mm²

Wiresize max. 14 AWG

Wiring Solder contacts

Locking device Latch lock

Material

Boot Polyurethan

Contact plating 0.2 µm Au hard alloy over 2 µm Ni

Contacts Brass (CuZn39Pb3)

Insert Polyamide (PA66)

Locking element Zinc diecast (ZnAl4Cu1)

Shell Zinc diecast (ZnAl4Cu1)

Shell plating Black chromium

Strain relief Polyacetal (POM)

Environmental

Flammability UL 94 V-0

Standard compliance IEC 61076-2-103

Protection class IP 40

Solderability Complies with IEC 68-2-20

Temperature range -30 °C to +80 °C
