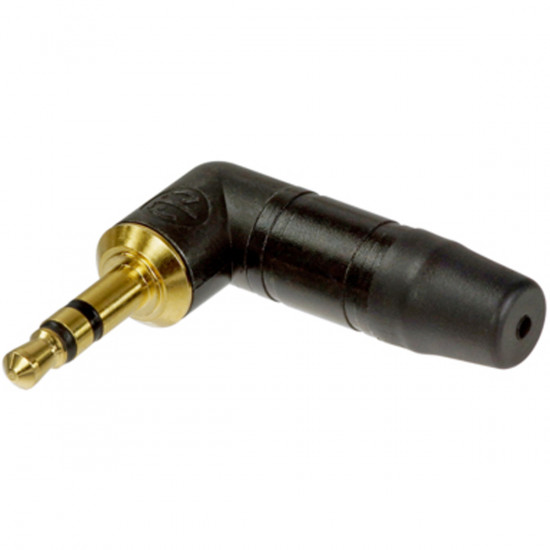

Neutrik NTP3RC-B Right Angle Stereo Jack 3.5mm mini Plug Black Gold Contacts

Neutrik NTP3RC-B Right Angle Stereo Jack 3.5mm mini Plug Black Gold Contacts

A 3.5mm plug with chuck type strain relief for cable diameters from 2mm to 4.5mm. Right angle connector, great for when space is tight and is better than straight Jacks that can cause stress on the Jack socket it is plugged into. Made and designed by Neutrik, if you check out their website and you will see they are the leading connector supplier all over the world. Quality, robust and reliable, what more can you ever want from a connector?

The connector is made from brass and then gold plated.

This is a solder on type connector so you will need a soldering iron.

All metal housing – reliable and robust

Easy to assemble, simple to use

Slim design – space saving

Excellent cable protection

All black housing with gold plated contacts.

Specifications

Electrical

Contact resistance - depends on mating connector m?

Dielectric strength - 1 kVdc

Insulation resistance - > 2 G? (initial)

Insulation resistance - >= 1 G? (after damp heat test)

Rated current per contact - <= 15 A

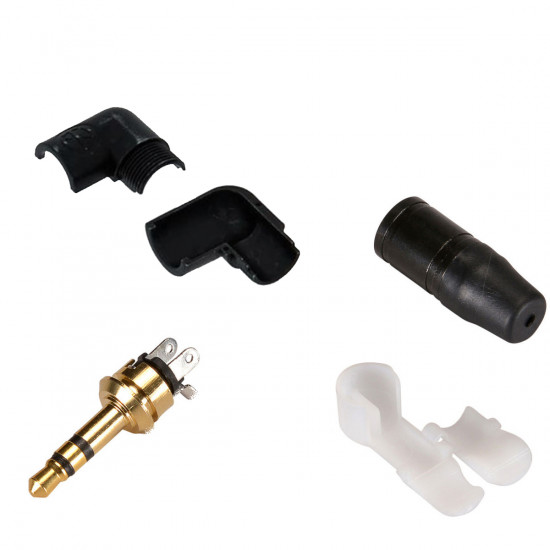

Materials used in the making of the connector:

Bushing - Brass (CuZn39Pb3) + PU, black Cr

Contact plating - 0.2 µm Au

Contacts - Brass (CuZn39Pb3)

Insert - Polyamide (PA 6.6 15 % GR)

Shell - Zinc diecast (ZnAl4Cu1)

Shell plating - Black chromium

Strain relief - Polyacetal (POM)
