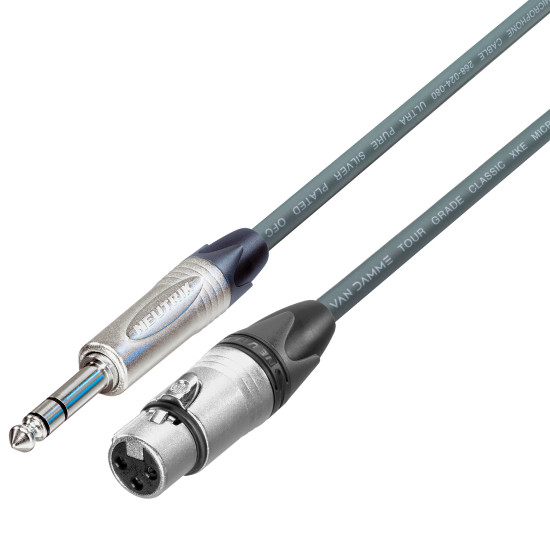

Van Damme Neutrik Female XLR To Balanced TRS 1/4" Jack Lead Tour Grade

Neutrik Female XLR to 1/4" 6.35mm TRS Jack Lead. High-quality lead made with high-grade Van Damme balanced cable and highly acclaimed Neutrik connectors.

This is a high-quality professional custom-made lead and will last for years. Made with 4 percent silver solder, for a better harder soldered joint that is shiny and bright and will last many years longer than standard lead-free solder. The silver provides for a better sound quality giving a clear and precise sound.

Custom-made for you - over 30 years of experience.

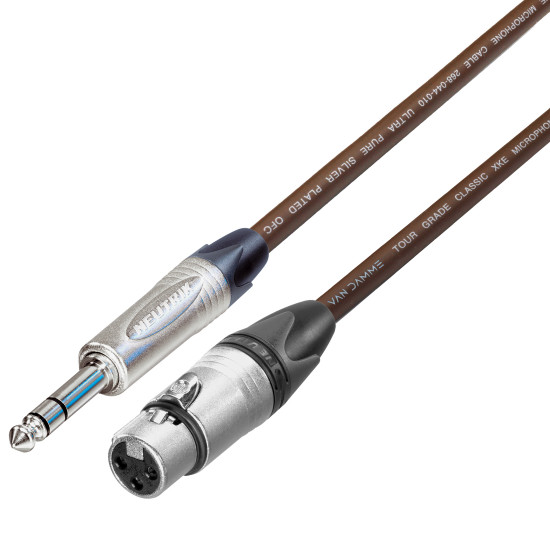

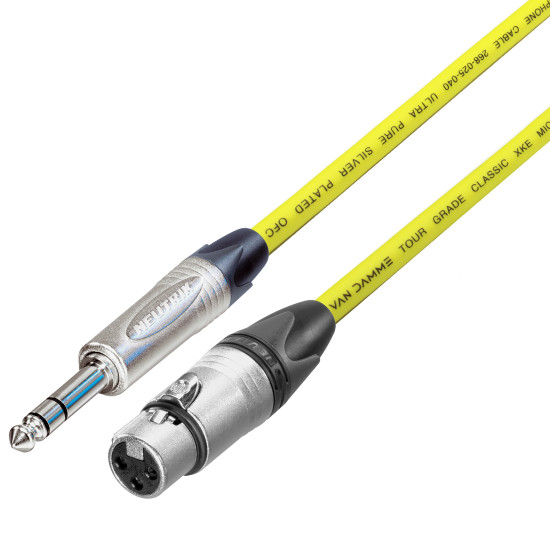

Available Colours Black Brown Red Orange Yellow Green Blue Purple Grey White

Standard Connections are made between the connectors on the:

Pin 2 XLR - Tip Jack (Hot)

Pin 3 XLR - Ring Jack (Cold)

Pin 1 XLR - Sleeve Jack (Screen)

For mic/line level use.

This lead is a balanced configuration and is intended for balanced audio equipment

Note if you use this lead on a piece of audio equipment that doesn't have a balanced input or output your audio may not sound correct as pin 3 will not be connected. Please ensure that both your input and output are balanced before buying this lead. Please consult your user manual for both your input and output audio equipment if you are unsure.

Important - Lead length Reference Points

PLEASE MEASURE UP CAREFULLY TO AVOID ERRORS

Leads 1m or less (patch leads) will be measured by visible cable from the rear black boot of the connector. We add 110mm of cable FREE to compensate for the connectors.

Leads over 1m will be measured cut length of cable. The connectors use up 110mm of cable.

If you need any specific length or need a little extra please ask - it can be made to that length as these are made to measure when we receive the order. Contact us once the order is placed or leave a message

We can make the lead to an exact length if you want - Order the lead that is slightly longer and message us.

If you want a longer lead let us know.

Typical applications for this lead:

Mixer output XLR to amplifier inputs TRS

Mixer output XLR to active speaker

Link lead between a power amplifier

Balanced microphone to microphone balanced mic input Jack

Patching in racks between FX units, EQ media output devices.

Can be used for any mic/line-level use

Mixer output to active speaker input (note an active speaker is a speaker with an amplifier built into it)

Please note that all inputs and output must be balanced

Van Damme Cable Specification:

A cable that is trustworthy reliable hard wearing. Van Damme Tour Grade Classic XKE Microphone cable combines flexibility, durability, noiseless operation, and excellent handling characteristics. Van Damme cables can be found in many film and recording studios, professional touring applications, professional DJ setups, education sectors, and hire companies. It really is a great cable. There aren't many cable companies that do have their own website but Van Damme is one of the exceptions. Their website has many famous artists on there and many stories where Van Damme cable has been used in touring and hiring applications. Please see http://www.van-damme.com and click on tour.

Mechanical specification cable

Conductor Material Bare silver plated ultra pure oxygen free copper wire

Stranding 7 x 0.10mm

Material Bare ultra pure oxygen free copper wire

Stranding 21 x 0.10mm

Insulation Material XLPE Cross-linked polyethylene

Diameter 1.60mm ±0.10

Colour coding Red, Blue

Cabling Type Twisted pair with cotton yarn fillers & paper wrap

Lay length 25mm

Screen Type 80 x 0.10mm close lap spiral bare oxygen-free copper wire

Jacket Material Flexible PVC/Neoprene composite

Average thickness 1.40mm

Overall diameter 6.35mm ±0.15

Physical properties unaged

Jacket (at 60ºC) Tensile strength >8N/mm2

Elongation >250%

Heat shock test 120 ºC x 1 hour - no cracks

Test voltage 1000 Vdc x 1 minute OK

Electrical characteristics

Resistance Conductor Ohm/Km <85

Screen Ohm/Km <85

Insulation M Ohm/Km >5000

Capacitance Core to core pF/m 56 nominal

Neutrik Connectors:

The connectors used on this lead are Nickel (silver in colour) Neutrik makes some of the best connectors that are available the world over.

We make this lead

We have been in the audio industry for well over 30 years. We make this lead-up using Neutrik and Van Damme cable in our workshop made professionally for you with our years of experience you are in safe hands.
