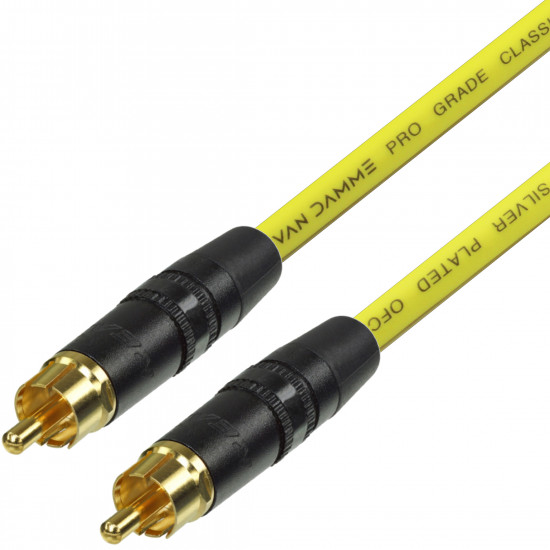

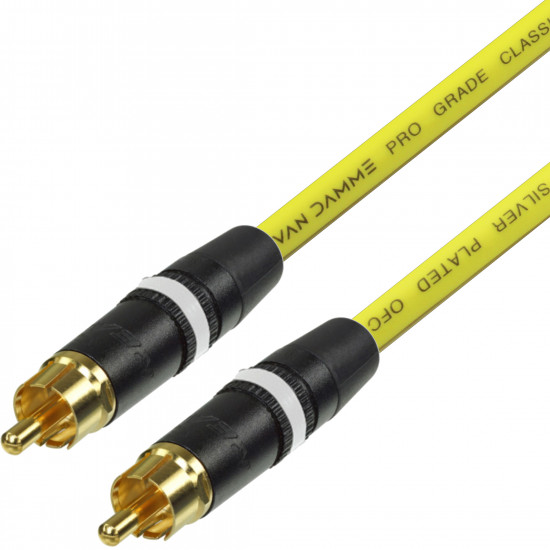

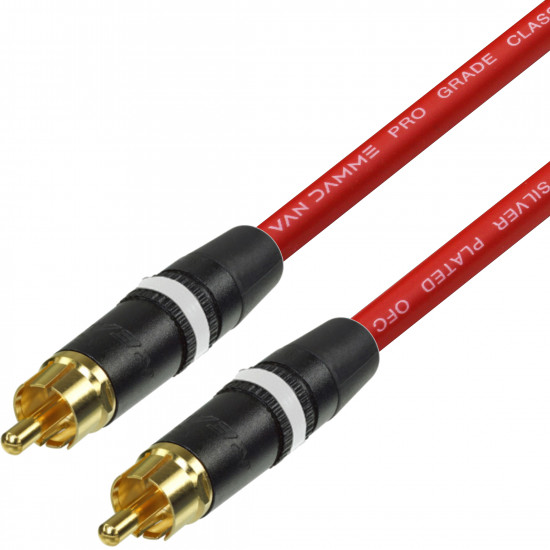

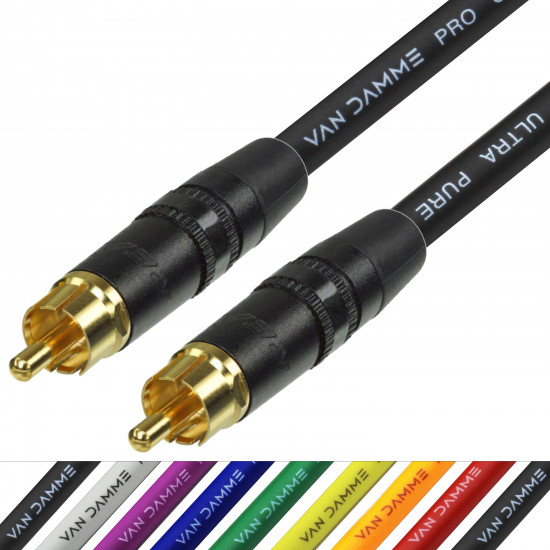

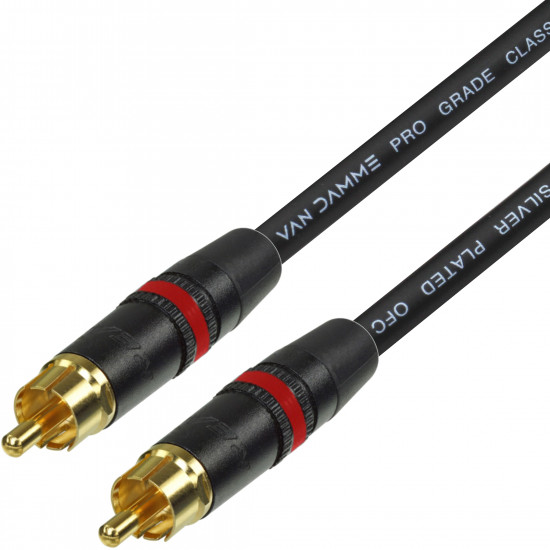

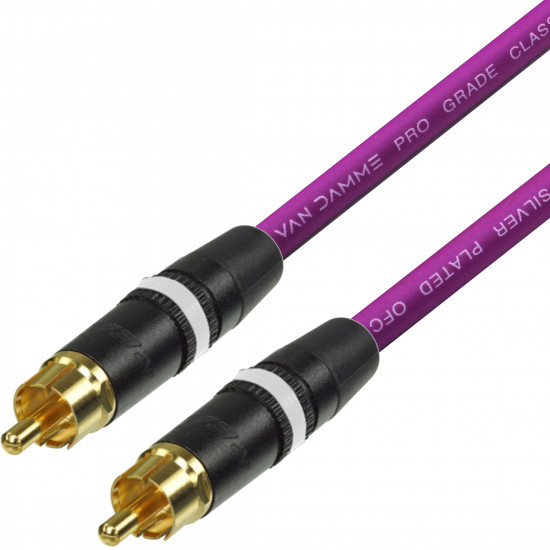

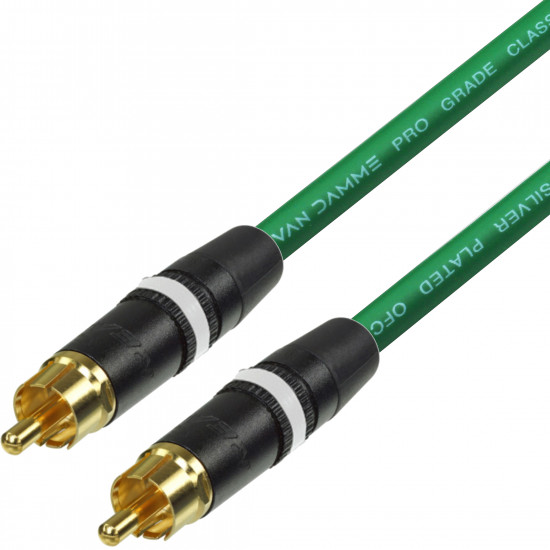

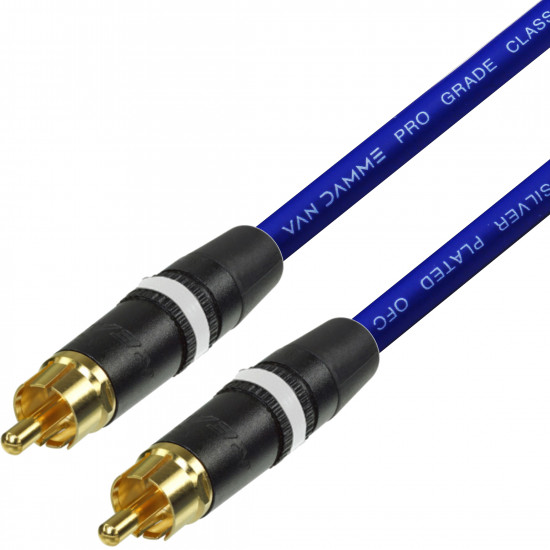

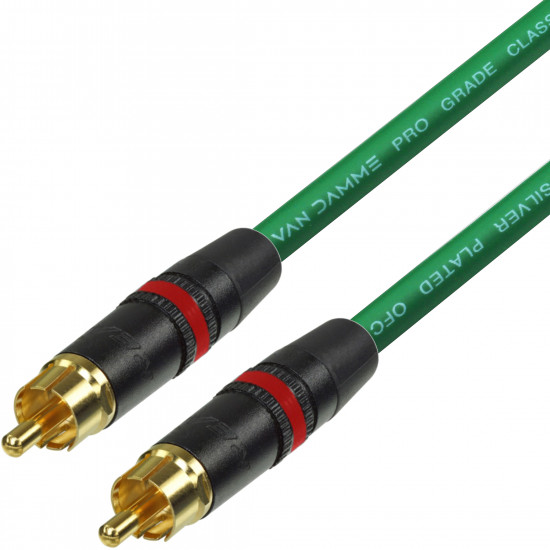

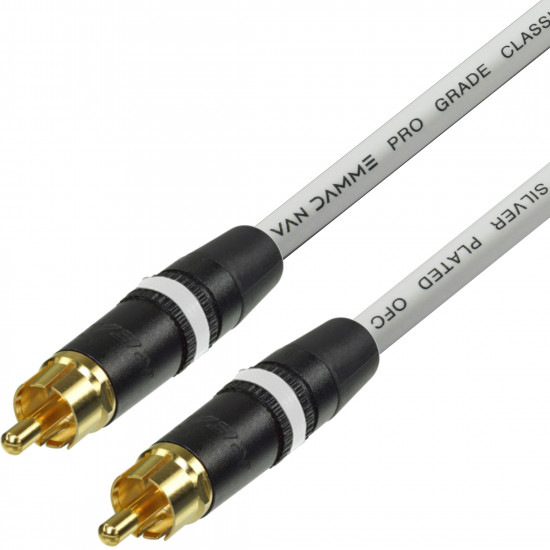

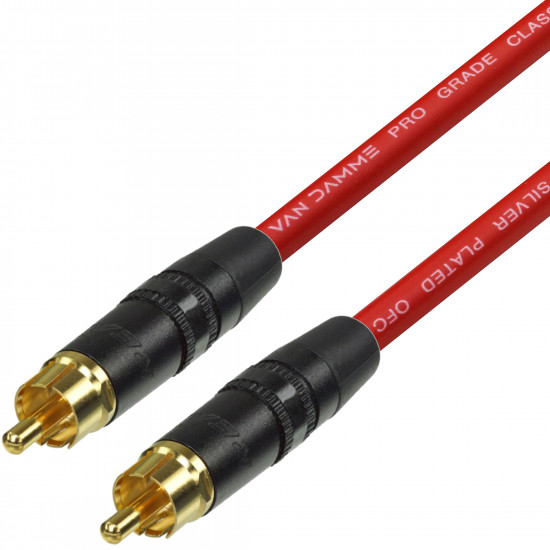

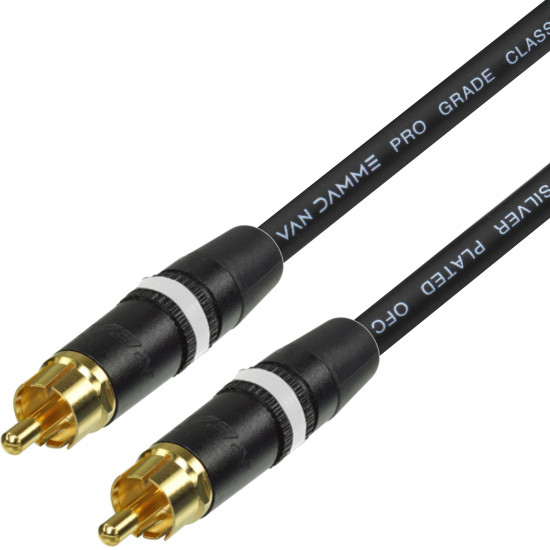

Van Damme Cable Neutrik Phono RCA lead with low noise silver plated Oxygen Free Copper dual screened cable, great noise rejection. Better sound quality due to silver plate copper conductors and gold contact RCA Phono connectors.

This is for a single Phono RCA to Phono RCA lead. If you require a stereo pair please add one to the cart with your choice of colour, colour ID and length and then add another with the available option once again.

Length of lead - is measured from where it comes out of the connector - If you want it a different length let us know before you order.

Applications Between:

HIFI Units
DJ CD Media Players
DJ mixers
Powered Bass Cab
Sub woofer powered Speaker

Connectors:

Neutrik Rean NYS373 Phono RCA series. Rean is owned by Neutrik who make some of the best audio connectors all over the world. The connectors have chuck type cord grip inside them for excellent cord grip. Gold plated contacts. Black shell with colour ID ring.

Van Damme Pro Grade Classic XKE Instrument Cable:

Low capacitance, Oxygen Free silver plated Copper for better sound reproduction over just copper cable, low capacitance. Commonly used for unbalanced input and output audio devices. The cable has excellent noise rejection due to its tight construction dual screens of conductive thermoplastic and close lapped copper screen.

Mechanical specification - Van Damme cable

Conductor Material Bare silver plated ultra pure oxygen free copper wire
Stranding 3 x 0.20mm
Material Bare ultra pure oxygen free copper wire
Stranding 4 x 0.20mm
Insulation Material Foamed Polyethylene
Diameter 1.60mm ±0.10
Screen 1 Type 0.40mm conductive thermoplastic
Screen 2 Type 80 x 0.10mm close lapped oxygen free copper wire
Jacket Material Flexible PVC/Neoprene composite
Average thickness 1.70mm
Overall cable diameter 6.00mm ±0.15
Physical properties unaged
Jacket (at 60ºC) Tensile strength >8N/mm2
Elongation >250%
Heat shock test 120 ºC x 1 hour - no cracks
Test voltage 1000 Vdc x 1 minute OK
Electrical characteristics
Resistance Conductor Ohm/Km 47
Insulation M Ohm/Km >5000
Capacitance Core to shield pF/m <90



























Write a review

Please login or register to review

Van Damme Cable Neutrik Rean Gold RCA Phono Lead

  • Product Code: vdinstrrca
  • Availability: In Stock
  • £6.69


Available Options


Tags: Van Damme Cable Neutrik Rean Gold RCA Phono Lead
