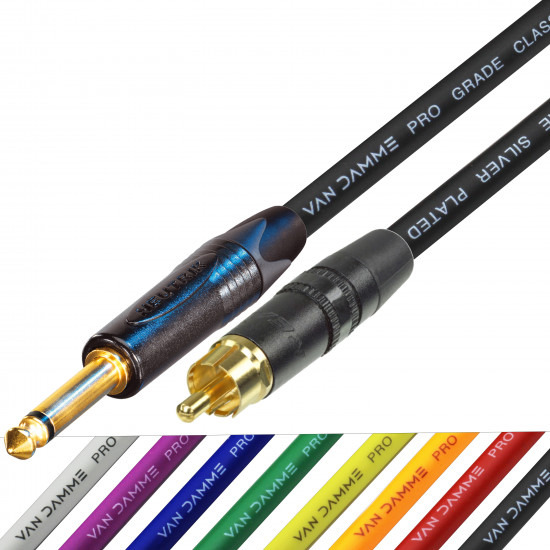

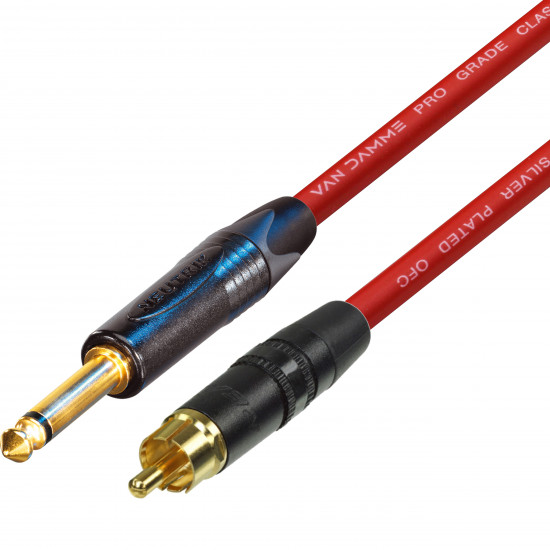

Gold RCA to Mono Jack Cable Silver Plated Van Damme Neutrik 6.35mm 1/4" Lead

RCA to 1/4" mono jack cable with a gold phono lead and is made with Van Damme dual-screened cable. The result is exceptional sound quality and durability. The Neutrik/Rean connectors used in this cable are highly respected in the industry for their ability to deliver top-notch sound and performance.

Lead Choose lead length RCA Boot Colour.

Sold as a single so you can choose your perfect combination of lead length, colour of the lead, and RCA ID Boot colour

Mechanical Specification

Conductors 3 x 0.20 mm silver-plated ultra-pure oxygen-free copper

4 x 0.20 mm bare ultra-pure oxygen-free copper

Conductor size 7 x 0.20 mm, 0.22 mm2, AWG 24/7

Insulation Foamed polyethylene

Screen 1 0.40 mm conductive thermoplastic

Screen 2 80 x 0.10 mm close lap spiral bare oxygen-free copper

Jacket material Flexible PVC/Neoprene composite

Overall diameter 6.00 ± 0.15 mm

Bend radius 10 x overall diameter

Operating temperature -20 to +70 ⁰C

Electrical Specification

Resistance Conductor < 90 Ohm/km

Insulation > 5000 MOhm/km

Capacitance Core to screen 90 pF/m
