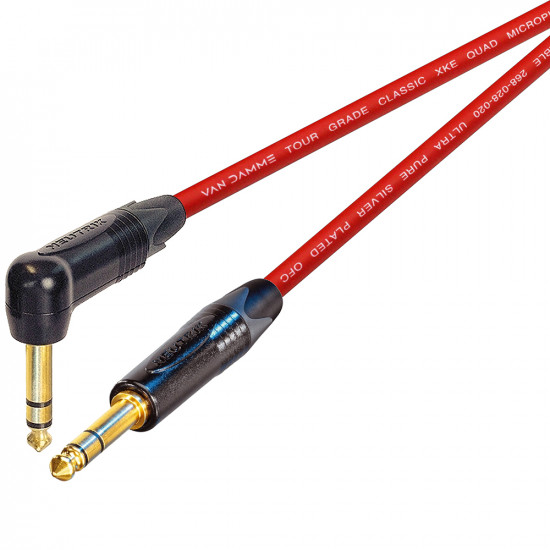

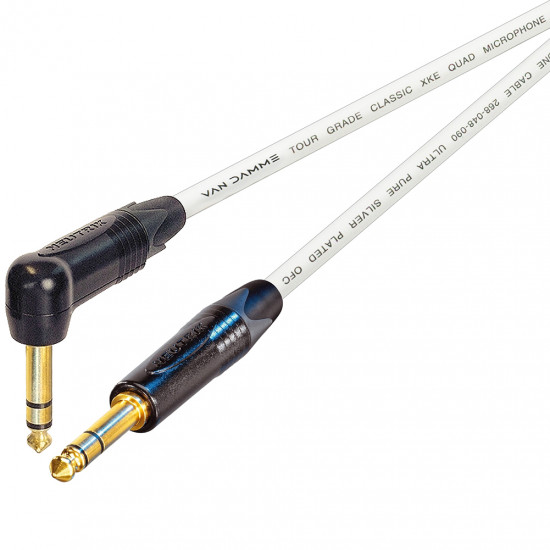

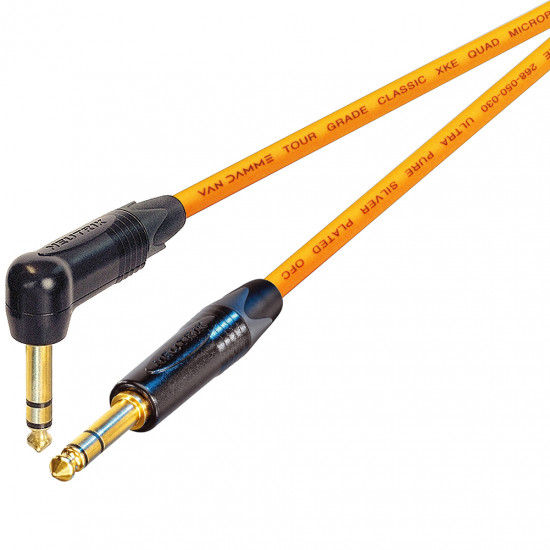

Van Damme Starquad Cable Neutrik TRS 1/4" Plug Black Gold Straight to Right Angle Jack

Van Damme Starquad Cable Neutrik TRS 1/4" Plug Black Gold Straight to Right Angle Jack Lead

Ultra Pure Oxygen Free Copper UPOFC Silver Plated Cable.

A professional lead that will last for years. It is made with genuine Neutrik NP3X-B straight Jack and NP3RX-B right angle Jack, with a black outer shell with gold contacts and Van Damme Tour Grade Classic XKE Starquad silver-plated cable, for a lower noise floor. Lower EMI, EMF, and RF levels. Suited for studio use due to its highly braided screen and 4 signal cables that better filter out noise with the balanced circuitry within your audio equipment.

Neutrik and Van Damme are some of the best names in the industry regarding audio and have the specifications to match so you will get great sound, robustness, and reliability from them.

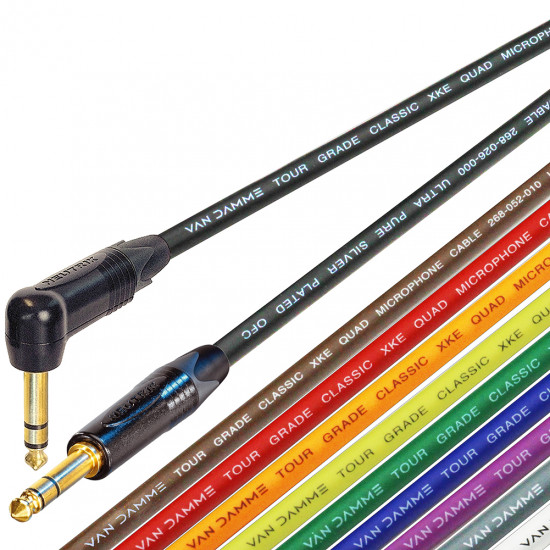

Choose your Van Damme balanced cable length and cable colour. Black, Red, Orange, Yellow, Green, Blue, Purple, and White. If you want a length that isn't shown or want it a specific length please let us know and we will make it.

Choose a Boot colour. Make your lead stand out. The standard colour is black. We will add the boot of your choice to both ends of the lead.

We make this lead

We have over 30 plus years of experience in the industry. We make the lead with great care and attention in our workshop, with 4 percent silver solder and high-end soldering equipment, this lead is made to last.

This lead is also known as 'TRS lead' 'Stereo 1/4" Jack lead' or '3 poles 1/4" Jack lead' all the terms are the same.

Connections are made between the connectors on:

Tip Jack (Hot) - Tip Jack (Hot)
Ring Jack (Cold) - Ring Jack (Cold)
Sleeve Jack (Screen) - Sleeve Jack (Screen)

These are standard connections.

PLEASE MEASURE UP CAREFULLY TO AVOID ERRORS

Leads 1m or less (patch leads) will be measured by visible cable from the rear black boot of the connector. We add 110mm of cable FREE to compensate for the connectors. Leads over 1m will be measured cut length of cable. The connectors use up 110mm of cable. If you need any specific length or need a little extra please ask - it can be made to that length as these are made to measure when we receive the order.

This lead is a balanced configuration made only for balanced audio equipment. Both the input and the output equipment must be balanced.

If you have a piece of audio equipment that is unbalanced then you need an unbalanced lead. Unbalanced leads are guitar/patch leads which we also sell. If you have one piece of audio equipment that is balanced and one unbalanced regardless if it is input or output then you will use an unbalanced lead.

Please ensure that your input and output are balanced before buying this lead. Please consult your user manual for both your input and output audio equipment if you are unsure.

Typical applications for this lead:

Mixer to amplifier inputs
Patching mixers to outboard equipment
Mixer to USB sound device
Link lead between power amplifiers
Patching in racks between FX units, EQ media output devices.
Can be used for any mic/line-level use
Mixer output to active speaker input (note an active speaker is a speaker with an amplifier built into it)

Please note that all inputs and output must be balanced

Van Damme Cable Specification:

A cable that is trustworthy reliable hard wearing. 'Van Damme Tour Grade Classic XKE Starquad for line and mic use combines flexibility, durability, noiseless operation, and excellent handling characteristics. Van Damme cables can be found in many film and recording studios, professional touring applications, professional DJ setups, education sectors, and hire companies. It really is a great cable. There aren't many cable companies with their own website but Van Damme is one of the exceptions. Their website has many famous artists on there and many stories where Van Damme cable has been used in touring and hiring applications. Please see http://www.van-damme.com and click on tour.

Mechanical specification cable

Material Bare silver plated ultra pure oxygen free copper wire

Stranding 7 x 0.08mm

Material Bare ultra pure oxygen free copper wire

Stranding 32 x 0.08mm

Insulation

Material XLPE Cross-linked polyethylene

Diameter 1.35mm ±0.10

Colour coding 2 x white 2 x blue

Cabling

Type Starquad

Lay length ~25mm

Screen

Type 128 x 0.10mm braided tinned oxygen-free copper wire

Coverage 98% optical coverage

Jacket

Material Flexible PVC/Neoprene composite

Average thickness 0.50mm

Overall diameter 6.00mm ±0.15

Physical properties un-aged Jacket (at 60ºC)

Tensile strength >8N/mm2

Elongation >250%

Heat shock test 150 ºC x 1 hour - no cracks

Test voltage 1000 Vdc x 1 minute OK

Electrical characteristics Resistance

Conductor Ohm/Km <93

Screen Ohm/Km <25

Insulation M Ohm/Km >5000

Capacitance

Core to core 48pF/m

Core to screen 91pF/mNeutrik Connectors:

Neutrik Connectors

Neutrik makes some of the best connectors that are available the world over. There are many copies of the Neutrik connectors available on the internet, don't be fooled by the cheaper makes they may break down and cause problems, so why risk it? These are genuine Neutrik connectors.
