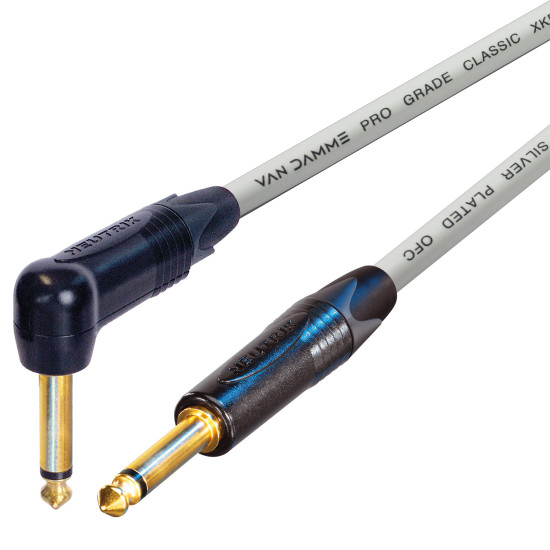

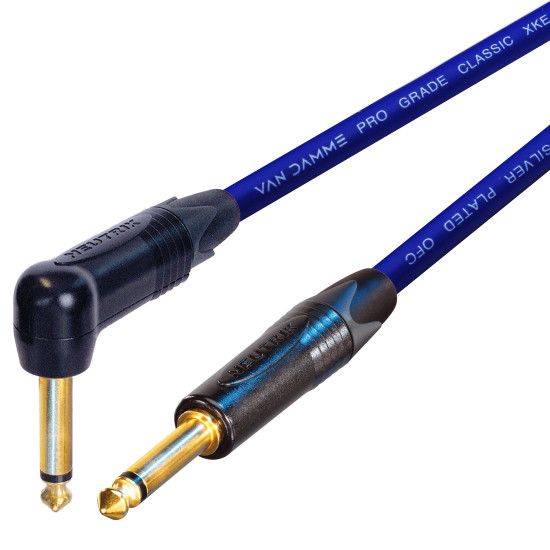

Van Damme Guitar Cable Neutrik 1/4" Straight To Right Angle Black Jack Lead

Black gold Neutrik 1/4 inch 6.35 mm connectors and Van damme dual-screened silver plated cable.

Professional guitar lead that will last for years. Made with genuine Neutrik 1/4" (6.35mm) NP2X-B straight black with gold contacts jack plug on one end and right angle black with gold contacts NP2RX-B Jack plug on the other end. Van Damme XKE Dual Screened silver plated cable, for better sound quality is used on this lead.

Neutrik and Van Damme are some of the best-branded names in professional audio leads and have the specifications to match so you will get great sound, robustness, and reliability from them. Many of our customers comment on the quality of the leads and sound quality over other makes.

We make many other leads with other connector combinations please check these out.

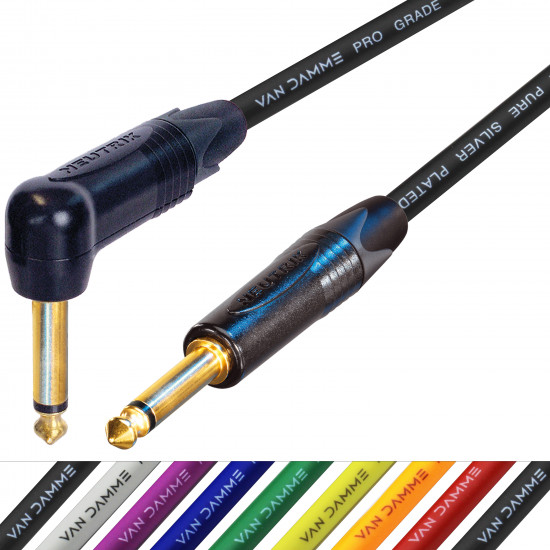

Choose your Van Damme cable length and cable Colour. Black, Red, Orange, Yellow, Green, Blue, Purple, and White. If you want a length that isn't shown or want it a specific length please let us know and we will make it.

Leads made up by us

We have over 30 plus years of experience in the industry. We make the lead up with great care and attention in our workshop and it is fully tested and inspected before leaving us. We also use silver solder 4 percent lead-free. Using high-grade solder means you will have trouble-free performance, silver is harder and even the flux within the solder neutralises once the soldered joint is made.

Cable Length Important - This is cut to length cable and the connector is added to it, this means around 10cm of the cable will be inside each of the connectors.

For mic/line level use only - this is NOT for connections between an amplifier output to passive speaker.

This lead is an unbalanced configuration, it can be used on equipment that is unbalanced or balanced configurations or a combination of the two.

Please consult your user manual for both your input and output audio equipment if you are unsure.

Typical applications for this lead:

All equipment must have 1/4" (6.35mm) Jack Sockets on.

Main use:

Guitar to Guitar amplifier

It can also be used for:

Keyboard to Keyboard amplifier
Unbalanced equipment with jack input and outputs
Aux out on a mixer to active monitor speaker
Mixer main output to active powered speakers unbalanced


Mechanical specification Van Damme Pro Grade XKE Instrument Cable

Conductors
Material - Bare silver plated ultra pure oxygen free copper wire
Stranding - 3 x 0.20mm
Material - Bare ultra pure oxygen free copper wire
Stranding - 4 x 0.20mm


Insulation
Material - Foamed Polyethylene
Diameter - 1.60mm ±0.10

Screen 1 Type - 0.40mm conductive thermoplastic

Screen 2 Type - 80 x 0.10mm close lapped oxygen free copper wire


Outer Jacket

Material - Flexible PVC/Neoprene composite
Average thickness - 1.70mm
Overall diameter - 6.00mm ±0.15

Physical properties un-aged Jacket (at 60ºC)
Tensile strength - >8N/mm2
Elongation - >250%
Heat shock test - 120 ºC x 1 hour – no cracks
Test voltage - 1000 Vdc x 1 minute OK

Electrical characteristics
Resistance
Conductor Ohm/Km <90
Insulation M Ohm/Km >5000
Capacitance Core to shield pF/m <90

Neutrik Connectors:

Neutrik makes some of the best connectors that are available the world over. There are many copies of the Neutrik connectors available on the internet, don't be fooled by the cheaper makes they may break down and cause problems, why risk it? These are genuine Neutrik connectors.
