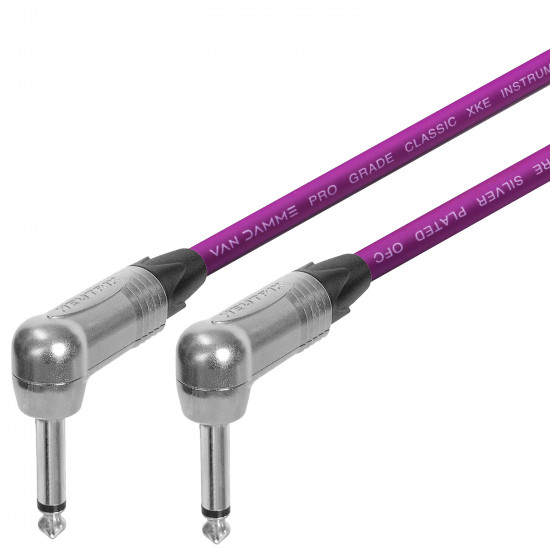

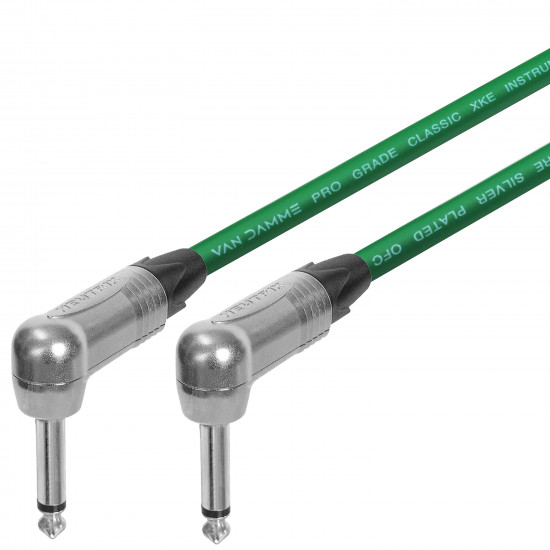

Van Damme Guitar Cable Lead Neutrik Right Angle 1/4" Silver Colour Jacks

Made with genuine Neutrik Silver in colour NP2XRX 1/4" (6.35mm) jack plugs at both ends of the lead and Van Damme XKE Dual Screened silver plated cable, for better sound quality. Neutrik and Van Damme are some of the best-branded names in professional audio leads and have the specifications to match so you will get great sound, robustness, and reliability from them. Many of our customers comment on the quality of the leads and sound quality over other makes.

We make many other leads with other connector combinations please check them out.

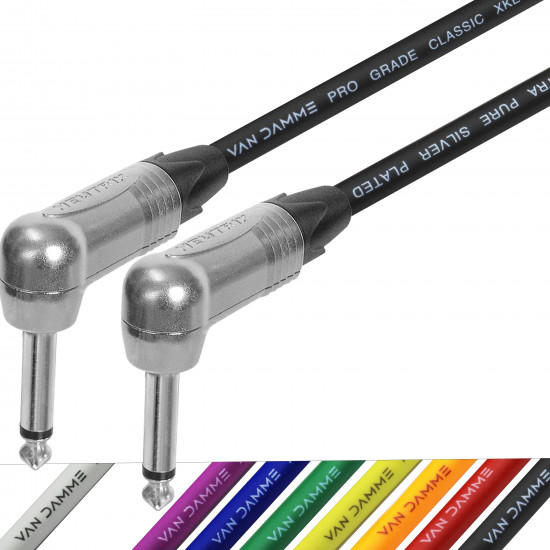

Choose your Van Damme cable length and cable Colour. Black, Red, Orange, Yellow, Green, Blue, Purple, and White. If you want a length that isn't shown or want it a specific length please let us know and we will make it.

Want a different Colour Boot?

We also sell this lead with these colour boots

Black Brown Red Orange Yellow Green Blue Purple Grey White - Black is the standard boot colour.

Leads made up by us

We have over 30 plus years of experience in the audio sector. We make the lead up with great care and attention in our workshop and it is fully tested and inspected before leaving us. 4 percent silver solder is used when we make this lead, better stronger joint, and silver make for better conductivity over standard lead-free solder.

Cable Length Important - This is cut to length cable and the connectors are added to it, this means around 10cm of the cable will be inside the connectors.

For mic/line level use only - this is NOT for connections between an amplifier output to passive speaker.

This lead is an unbalanced configuration, it can be used on equipment that is unbalanced or balanced configurations or a combination of the two.

Please consult your user manual for both your input and output audio equipment if you are unsure.

Typical applications for this lead:

All equipment must have 1/4" (6.35mm) Jack Sockets.

Main use:

Guitar to Guitar amplifier

It can also be used for:

Keyboard to Keyboard amplifier
Unbalanced equipment with jack input and outputs
Aux out on a mixer to active monitor speaker
Mixer main output to active powered speakers unbalanced


Mechanical specification Van Damme Pro Grade XKE Instrument Cable

Conductors
Material - Bare silver plated ultra pure oxygen free copper wire
Stranding - 3 x 0.20mm
Material - Bare ultra-pure oxygen-free copper wire
Stranding - 4 x 0.20mm


Insulation
Material - Foamed Polyethylene
Diameter - 1.60mm ±0.10

Screen 1 Type - 0.40mm conductive thermoplastic

Screen 2 Type - 80 x 0.10mm close-lapped oxygen-free copper wire


Outer Jacket

Material - Flexible PVC/Neoprene composite
Average thickness - 1.70mm
Overall diameter - 6.00mm ±0.15

Physical properties of un-aged Jacket (at 60ºC)
Tensile strength - >8N/mm2
Elongation - >250%
Heat shock test - 120 ºC x 1 hour – no cracks
Test voltage - 1000 Vdc x 1 minute OK

Electrical characteristics
Resistance
Conductor Ohm/Km <90
Insulation M Ohm/Km >5000
Capacitance Core to shield pF/m <90

Neutrik Connectors:

Neutrik makes some of the best connectors that are available the world over. There are many copies of the Neutrik connectors available on the internet, don't be fooled by the cheaper makes they may break down and cause problems, why risk it? These are genuine Neutrik connectors.
