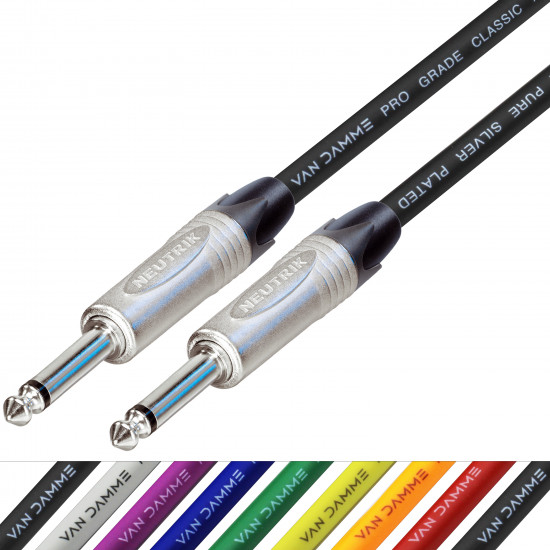

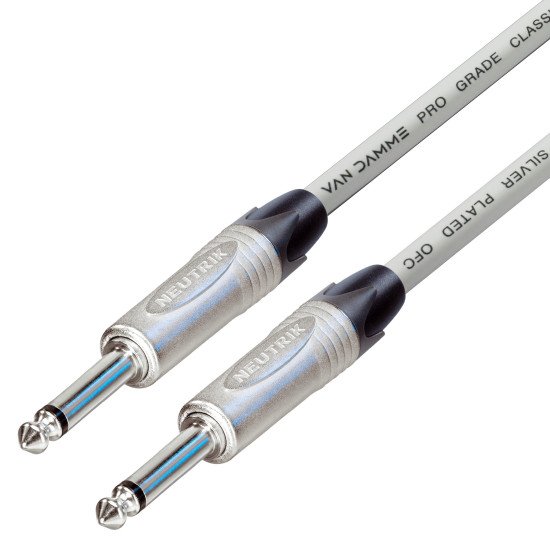

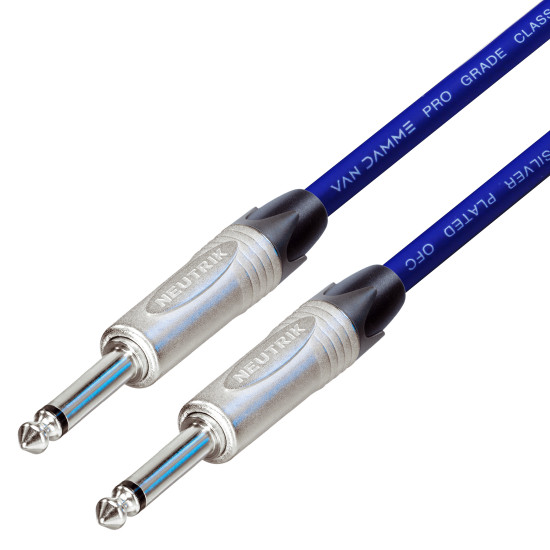

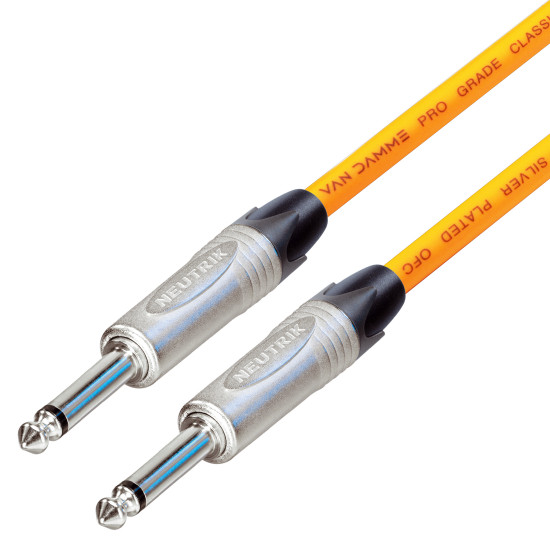

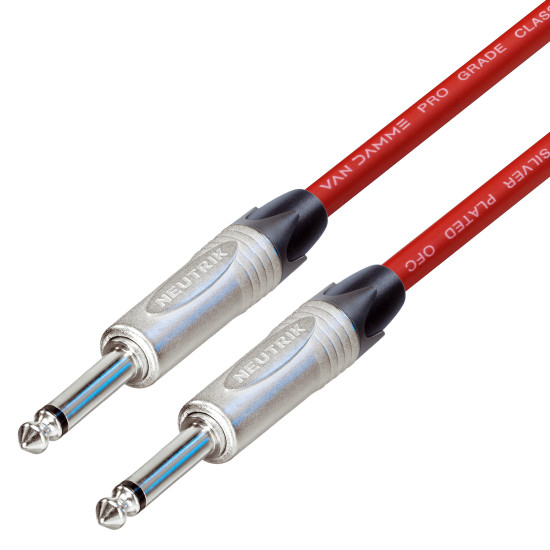

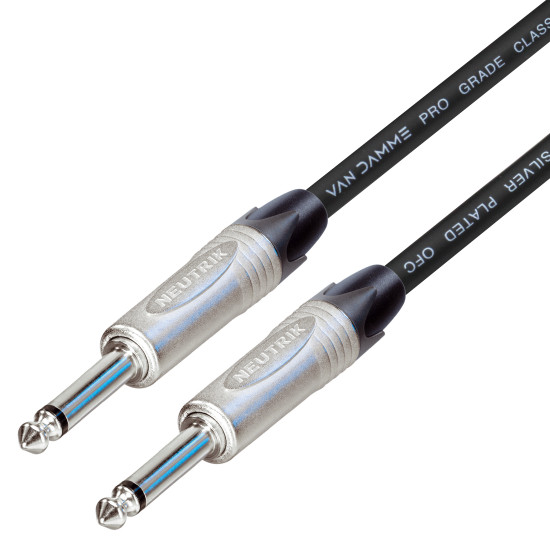

Van Damme Guitar Cable Lead Neutrik 1/4" Straight Nickel Jacks

Professional guitar lead that will last for years. Made with Neutrik NP2X straight silver in colour 1/4" (6.35mm) jack plugs on both ends of the lead and Van Damme XKE Dual Screened silver plated cable, for better sound quality. Neutrik and Van Damme are some of the best-branded names in professional audio leads and have the specifications to match so you will get great sound, robustness and reliability from them. Many of our customers comment on the quality of the leads and sound quality over other makes. We make many other leads with other connector combinations please check them out.

Want a different Colour Boot?

We also sell this lead with these colour boots

Black Brown Red Orange Yellow Green Blue Purple Grey White - Black is the standard boot colour.

Choose your Van Damme cable length and cable Colour. Black, Red, Orange, Yellow, Green, Blue, Purple, and White. If you want a length that isn't shown or want a specific length please let us know and we will make it.

Boot Colour Choose from Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Grey, or White. Black is the Standard Colour. The cost is a little extra but worth making the lead more professional. Boots would be replaced with standard black boots.

Leads made up by us

We have over 30 plus years of experience in the industry. We make the lead-up with great care and attention in our workshop and it is fully tested and inspected before leaving us.  Silver solder with a 4 percent content is also used. This gives a very good soldered joint, that is far better than standard lead-free solder. The flux within the solder also is neutralised once soldered, many other soldered do not do this. Flux is what helps the solder stick to the solder contacts within the connector.

Cable Length Important - This is cut length and the connector is added to it, this means around 10cm of the cable will be inside the connectors.

For mic/line level use only - this is NOT for connections between an amplifier output to passive speaker.

This lead is an unbalanced configuration, it can be used on equipment that is unbalanced or balanced configurations or a combination of the two.

Please consult your user manual for both your input and output audio equipment if you are unsure.

Typical applications for this lead:

All equipment must have 1/4" (6.35mm) Jack Sockets on.

Main use:

Guitar to Guitar amplifier

It can also be used for:

Keyboard to a Keyboard amplifier
Unbalanced equipment with jack input and outputs
Aux out on a mixer to an active monitor speaker
Mixer main output to active powered speakers unbalanced


Mechanical specification Van Damme Pro Grade XKE Instrument Cable

Conductors
Material - Bare silver plated ultra pure oxygen-free copper wire
Stranding - 3 x 0.20mm
Material - Bare ultra-pure oxygen-free copper wire
Stranding - 4 x 0.20mm


Insulation
Material - Foamed Polyethylene
Diameter - 1.60mm ±0.10

Screen 1 Type - 0.40mm conductive thermoplastic

Screen 2 Type - 80 x 0.10mm close lapped oxygen free copper wire


Outer Jacket

Material - Flexible PVC/Neoprene composite
Average thickness - 1.70mm
Overall diameter - 6.00mm ±0.15

Physical properties un-aged Jacket (at 60ºC)
Tensile strength - >8N/mm2
Elongation - >250%
Heat shock test - 120 ºC x 1 hour – no cracks
Test voltage - 1000 Vdc x 1 minute OK

Electrical characteristics
Resistance
Conductor Ohm/Km <90
Insulation M Ohm/Km >5000
Capacitance Core to shield pF/m <90

Neutrik Connectors:

Neutrik makes some of the best connectors that are available the world over. There are many copies of the Neutrik connectors available on the internet, don't be fooled by the cheaper makes they may break down and cause problems, why risk it? These are genuine Neutrik connectors.
