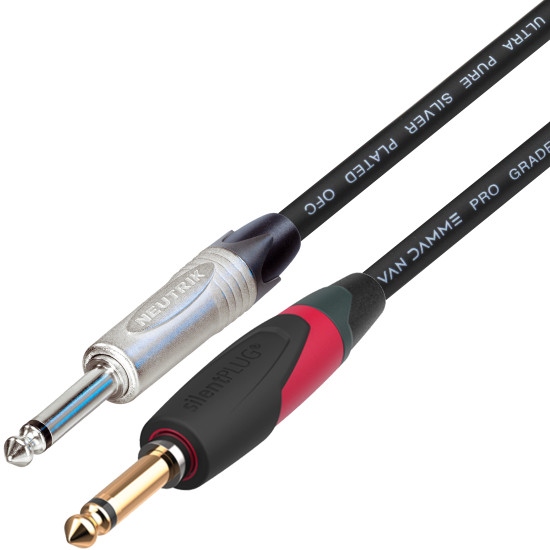

Van Damme Guitar Cable Lead Neutrik 1/4" Straight Silver to Silent Jack

High-quality professional guitar lead that will last for years. Made with genuine Neutrik NP2X straight nickel (silver) coloured 1/4" (6.35mm) jack plug on one end of the lead and Straight NP2XX-Silent Jack plug on the other with Van Damme UPOFC XKE Dual Screened silver plated cable, for better, more precise sound quality.

The Neutrik Silent Jack is useful for hot swapping of guitars without causing the buzz and loud pops you would normally get from a standard Jack to Jack guitar lead when unplugging it from the guitar.

We make many other leads with other connector combinations please check them out.

Want a different Colour Boot?

We also sell this lead with these colour boots

Black Brown Red Orange Yellow Green Blue Purple Grey White - Black is the standard boot colour.

Choose your Van Damme cable length and cable Colour. Black, Red, Orange, Yellow, Green, Blue, Purple, White. If you want a length that isn't shown or want it a specific length please let us know and we will make it.

Leads made up by us

We have over 30 plus years of experience in the industry. We make the lead up with great care and attention in our workshop and it is fully tested and inspected before leaving us.

This lead is also known as:

Silent Straight Jack Guitrar Lead
Guitar Lead
Instrument Lead
Keyboard Lead
TS Screened Lead
Mono 1/4" Jack Lead
2 pole 1/4 Jack Lead
Straight Jack Plug Guitar Lead
Unbalanced 1/4" Jack Plug Lead
Screen Jack Plug Lead
6.35mm Jack Plug Lead
Jack to Jack Unbalanced Screened Lead


All the terms are the same.

Connections are made between the connectors on:

Tip Jack (Hot) - Tip Jack (Hot)
Sleeve Jack (Screen) - Sleeve Jack (Screen)

Cable Length Important - This is cut length of cable and the connector is added to it, this means around 110 mm of the cable will be inside the connectors.

For mic/line level use only - this is NOT for connections between an amplifier output to passive speaker.

This lead is a unbalanced configuration, it can be used on equipment that is unbalanced or balanced configurations or a combination of the two.

Please consult your user manual for both of your input and output audio equipment if you are unsure.

Typical applications for this lead:

All equipment must have 1/4" (6.35mm) Jack Sockets on.

Main use:

Guitar to Guitar amplifier

Can also be used for:

Keyboard to Keyboard amplifier
Unbalanced equipment with jack input and outputs
Aux out on a mixer to active monitor speaker
Mixer main output to active powered speakers unbalanced


Mechanical specification Van Damme Pro Grade XKE Instrument Cable

Conductors
Material - Bare silver plated ultra pure oxygen free copper wire
Stranding - 3 x 0.20mm
Material - Bare ultra-pure oxygen free copper wire
Stranding - 4 x 0.20mm


Insulation
Material - Foamed Polyethylene
Diameter - 1.60mm ±0.10

Screen 1 Type - 0.40mm conductive thermoplastic

Screen 2 Type - 80 x 0.10mm close-lapped oxygen-free copper wire


Outer Jacket

Material - Flexible PVC/Neoprene composite
Average thickness - 1.70mm
Overall diameter - 6.00mm ±0.15

Physical properties un-aged Jacket (at 60ºC)
Tensile strength - >8N/mm2
Elongation - >250%
Heat shock test - 120 ºC x 1 hour – no cracks
Test voltage - 1000 Vdc x 1 minute OK

Electrical characteristics
Resistance
Conductor Ohm/Km <90
Insulation M Ohm/Km >5000
Capacitance Core to shield pF/m <90

Neutrik Connectors:

Neutrik makes some of the best connectors that are available the world over. There are many copies of the Neutrik connectors available on the internet, don't be fooled by the cheaper makes they may break down and cause problems, so why risk it? These are genuine Neutrik connectors.
